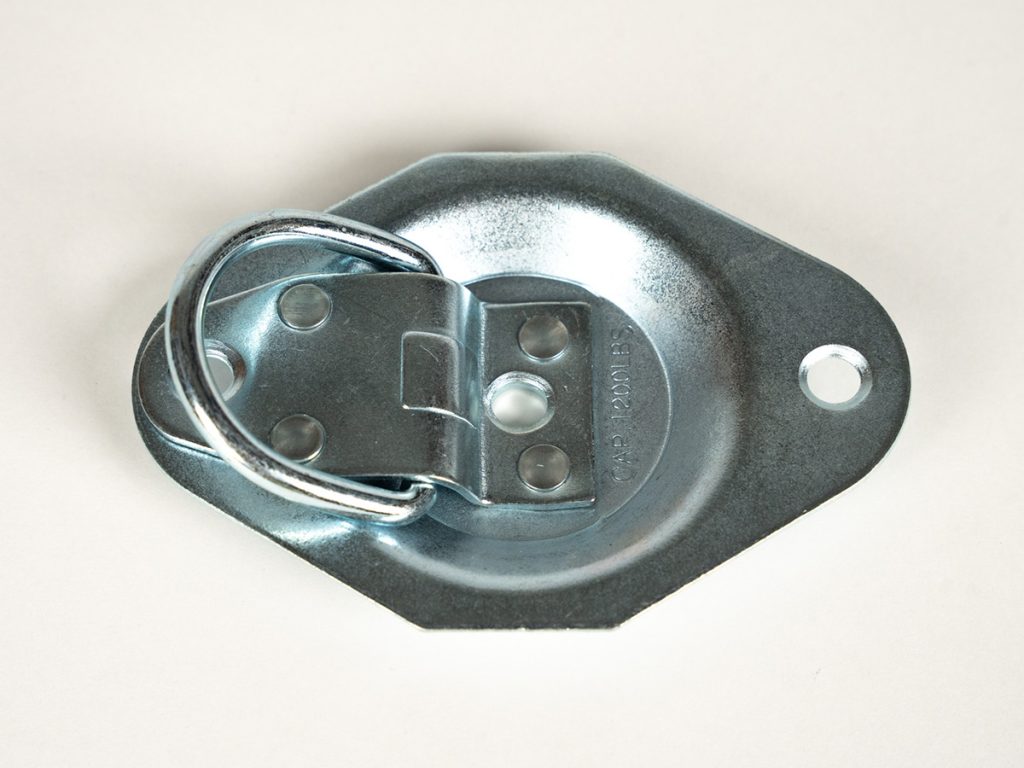

Recessed .85″ Rope Ring

Designed for smaller loads, these recessed tie-down D-rings secure tools and lighter equipment, such as motorcycles, lawn mowers, and ATVs. Its pan and flange sit flush and out of the way on trailer and truck decks, as well as inside vans.

Each D-ring flips up to anchor ropes, cargo straps, cables, or bungee straps, and you can manage hefty tie-down jobs with 1,200 lbs. of working load limit (WLL) per easily mounted unit.

Made of zinc-covered steel, this D-ring assembly resists corrosion due to wet weather and stands up to the rigours of frequent use.

Features

• 3 Mounting holes countersunk for 1/4″ screws.

• Convenient anchor point for ropes, bungee cords, cables, or straps

• Sturdy 5 in. X 3 1/2 in. mounting bracket provides a sturdy base /5″ long, 3.5″ wide, and /5″ recessed D-ring, zinc plated 3 1/2″ X 3/8″ deep.

• 3/8″ deep recessed pan design sits flush and eliminates obstruction

• Protected by a durable zinc-plated finish

Easy Installation

• Locate a frame cross member to assure optimum holding strength.

• Trace your pan, flange and bolt holes to guide your cutting and drilling.

• Use a 3″ hole saw to cut a hole 3/8″ deep in your floor, deck, or wall.

• Use a chisel or screwdriver to pry the wood out of the hole and to clean out any excess splinters so your pan fits snugly.

• Drill holes for screws.

• Screw down your D-ring assembly
