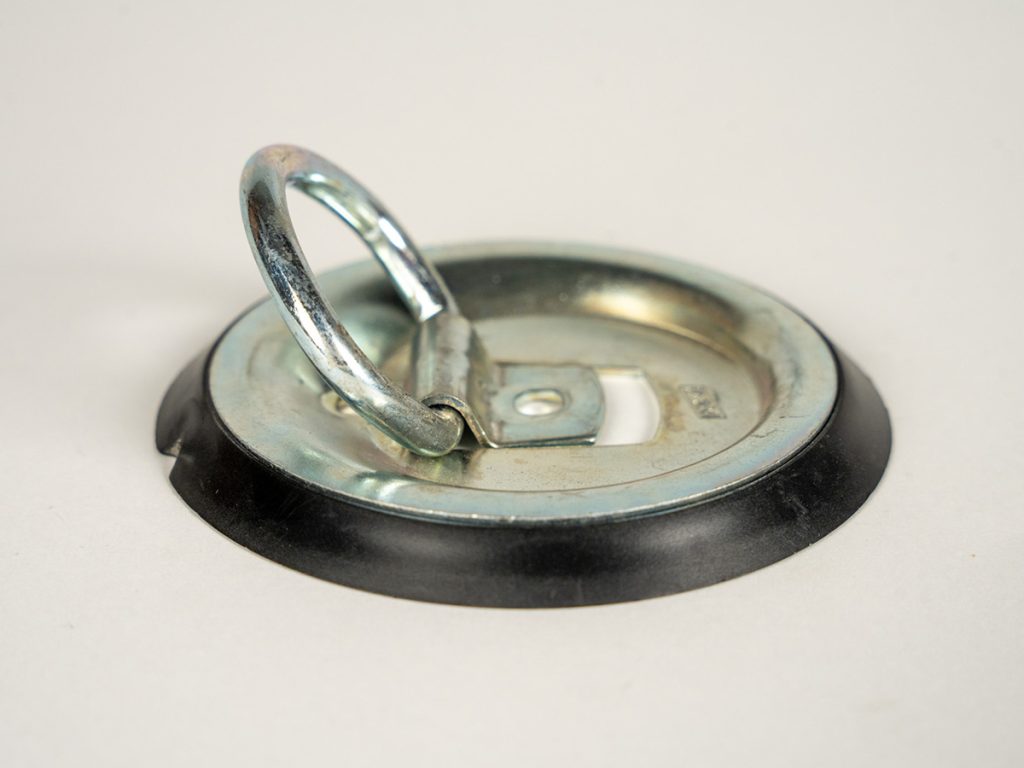

Surface Mount 1/4″ Tie-Down Ring

Latch onto a practical, economical, and durable solution for light to medium-duty tie-downs. This handy surface-mount features a sturdy tie-down anchor that pivots up when you need it. It stays out of the way inside a low-profile plastic base until you have a securement job that requires its 1200 lbs. of Working Weight Limit (WLL), or the cumulative WLL of multiple mounted tie-downs working together.

It’s easy to install. All you need is two bolts for the base and one for the corrosion-resistant tie-down. The low profile makes it a great, unobstructed choice for trailers and truck beds.

Bolts/screws not included.

Features

• Mounts flush on horizontal or vertical surfaces

• Ring swings up or out easily when needed.

• Low-profile design keeps out of the way on trailers or truck beds.

• Zinc-plated steel tie-down provides extra corrosion protection.

• UV-Resistant plastic base for enhanced durability.

• Anti-rattling spring mechanism prevents the noise of a bouncing D-ring.

• Tie-down secured by a single bolt not included)

Tie-Down Ring

• Material: Zinc-plated steel

• Thickness: .236

• Inner diameter: 1.75″

• Outer diameter: 2.75″

• Bolt hole diameter: .409”

Base

• Material: Plastic with UV inhibitor

• Colour: Black

• Plastic base inner diameter: 3.02″

• Plastic Base diameter: 4.02″

• Base bolt hole diameter: .256″

• Distance between boltholes (center to center): 2.250″
