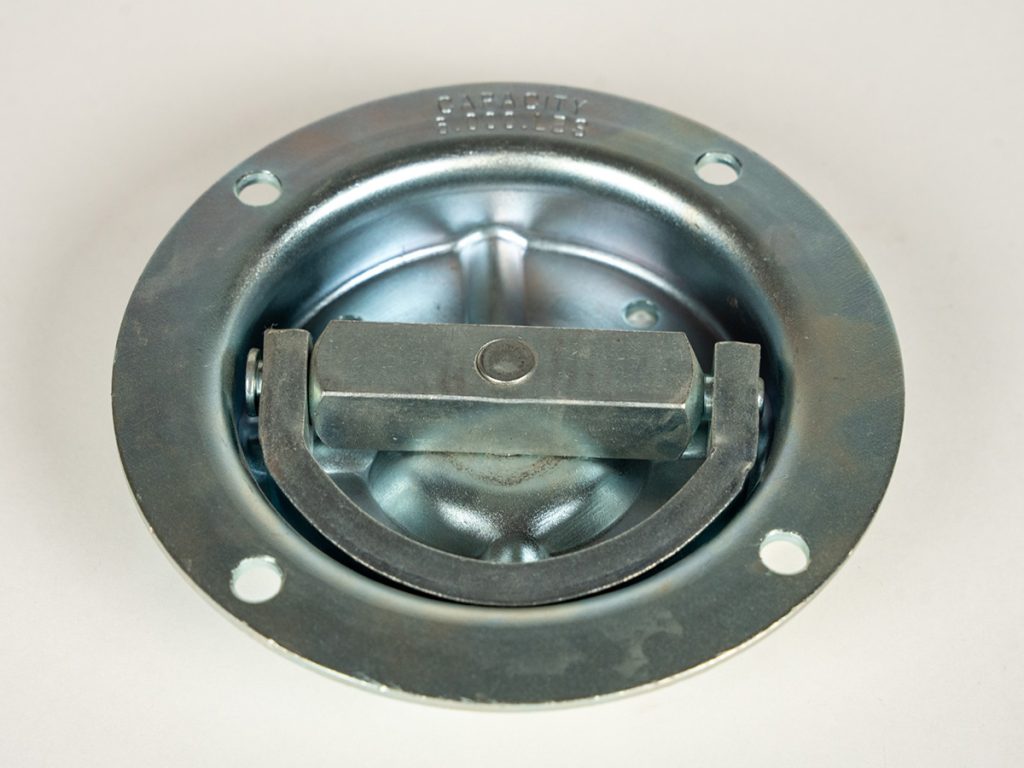

Swivel Recessed 1 1/4” D-Ring

ut of the way when you don’t need it. Extremely versatile when you do. When not in use, this strong, durable D-ring nests in a recessed pan fitting that mounts flush on the deck of a truck, trailer, or RV. But when you swivel into the upward position, it rotates 360 degrees – acting as a handy multi-directional anchor point for tie-downs with a working load limit (WLL) of up to 2,000 lbs.

It’s easy to attach most hooks, and your connection is always the shortest, straightest, and tightest possible – from any angle. It’s less of an obstacle and less likely to slip than other load securement options.

Features

• Bolt-on mounting

• Recessed pan fitting with drain holes.

• Multi-directional pulling with a 360-degree swivel

• Corrosion-resistant, zinc-plated steel construction

• Accommodates almost every kind of hook.

• Ring stores out of the way in the pan when not in use.

Easy Installation

• You’ll need 4 bolts, 4 washers, 4 nuts, and 1 backing plate (not included) for every D-ring you install.

• Use a hole saw to drill a hole in your deck that the pan can fit snugly into.

• Push bolts down through four bolt holes

• Under the deck, slip the plate over the bolt ends and tighten the washers and nuts.

Each D-ring you install adds 2,000 lbs. Of WLL, so one on each corner of your deck adds up to 8,000 lbs.
