6 inch Oval 10-LED Surface Mount Tail Light

Product #: STL78RB

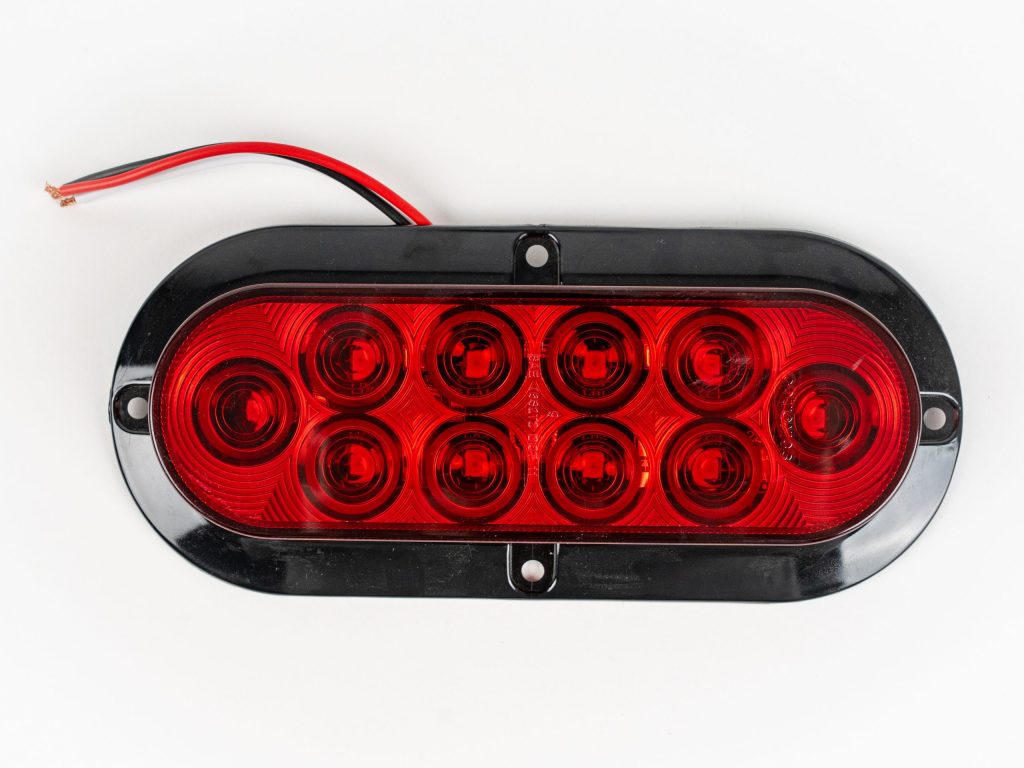

Red Red 6 inch Oval 10-LED Surface Mount Tail Light. Also works as turn and brake light. Showing 3-wire electrical connection.
Red Red 6 inch Oval 10-LED Surface Mount Tail Light. Also works as turn and brake light. Showing 3-wire electrical connection.
Red Red 6 inch Oval 10-LED Surface Mount Tail Light. Also works as turn and brake light. Showing 3-wire electrical connection.
Red 6 inch Oval 10-LED Surface Mount Tail Light. Also works as turn and brake light.
Bottom of grommet for Red 6 inch Oval 10-LED Surface Mount Tail Light. Showing 3-wire electrical connection.
$23.88 + tax
Ship To Home
Pickup In-Store

Specs

Product # STL78RB

Product Description

This 6 inch Oval 10-LED Surface Mount Tail Light makes a more responsive replacement for your incandescent trailer tail light. It signals turns and braking more quickly than your old light, but it also glows brighter, lasts longer, and uses energy more efficiently. It connects with three wires – white for ground, red for stop and turn signal, and black for tail light.

A mounting flange surrounds the light for flush installation at the rear of your trailer. It features four holes for mounting hardware (not included).

The polycarbonate housing and lens are sealed so well that they can be submerged without letting water in. So, this light locks out corrosion that shortens the life of an electrical component. With solid-state LEDs, you won’t have to worry about replacing bulbs or dealing with brittle filaments.

Features

  • Waterproof, polycarbonate housing and lens
  • 10 light-emitting diodes (LEDs)
  • Overall dimensions: 7-9/16 inch long x 3-5/16 inch wide
  • Draws 0.243 amps  (stop & turn) & 0.046 (tail light) at 12.8 volts.
  • 3 electrical wires – tail light, stop & turn, and ground
  • Lifetime LED warranty
