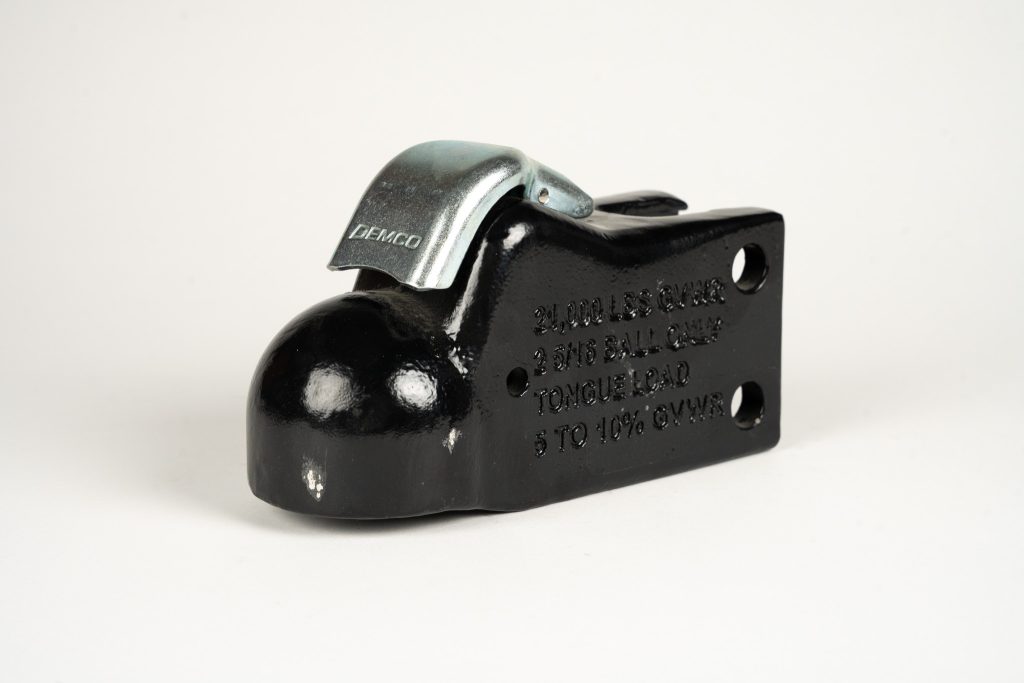

DEMCO 21K Channel Ball Mount Cast Coupler
Product #: 15791-81
Specs
Details
Application: 3" wide channel bracket
Trailer Weight Capacity: 21,000 Lbs
Coupler Capacity: 21,000 Lbs. GTW
Ball Diameter:2 5/16"
Coupler dimensions: 8-1/8" long x 2-7/8" wide
Lock pin hole diameter: 5/16"
Minimum pin lock span: 3"
Latch Type: E-Z Latch
Style: Cast
Finish: Black Powder Coat
Hardware: Bolts Sold Separately (Use 4EA Short)
1-Year warranty
Trailer Weight Capacity: 21,000 Lbs
Coupler Capacity: 21,000 Lbs. GTW
Ball Diameter:2 5/16"
Coupler dimensions: 8-1/8" long x 2-7/8" wide
Lock pin hole diameter: 5/16"
Minimum pin lock span: 3"
Latch Type: E-Z Latch
Style: Cast
Finish: Black Powder Coat
Hardware: Bolts Sold Separately (Use 4EA Short)
1-Year warranty
Product #
15791-81
Product Details
Could this be one of the easiest trailer hook-ups ever? This coupler’s eZ-Latch system allows you to simply line it up with your ball hitch, lower it, and watch it slide down under its own weight and self-latch securely. It detaches with the pull of a handle.
This SAE J684-certified unit mounts on a channel to accommodate multiple hitch heights. It’s solidly built from cast metal and protected from rust and corrosion by a black powder coat. That finish gives this coupler a 500-hour salt-spray rating, making it ideal for marine use. And you can haul a big boat with 21,000 lbs. GTW.
Features
- Sturdy cast-steel construction
- EZ-Latch allows you to hook up in the closed position.
- Works with channel bracket to adjust vertically for several hitch applications.
- Black powder-coat finish offers corrosion resistance.
- Highly resistant to salt spray.
- SAE J684 certification
Channel bracket and mounting hardware sold separately. Requires four 5/8″ Grade 5 mounting bolts for 21,000 lb. weight capacity.
