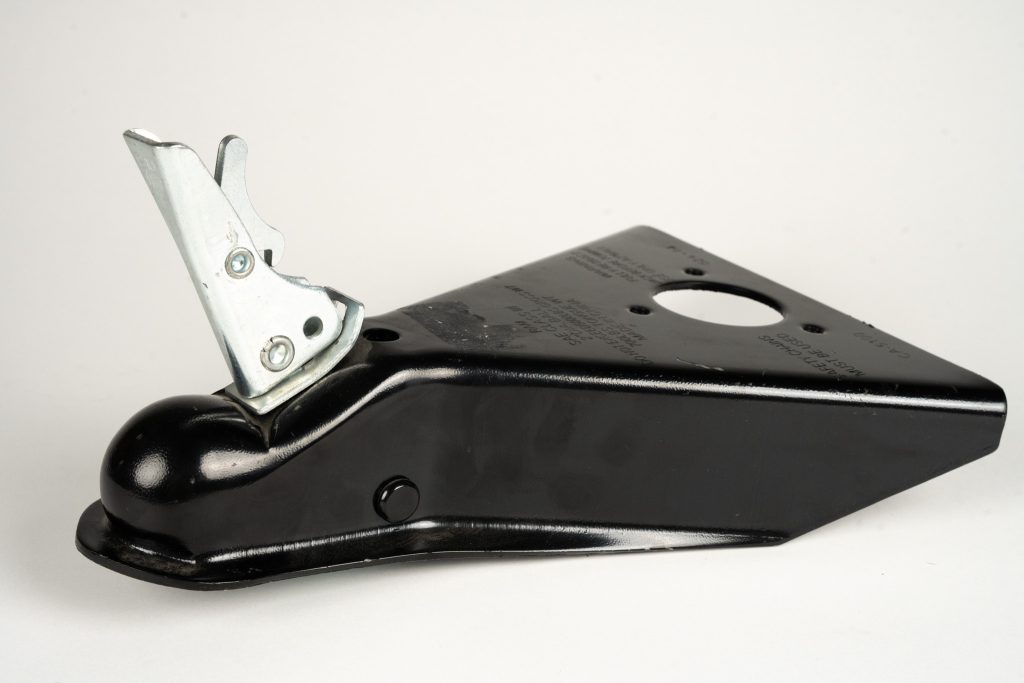

RAM 5K A-Frame Coupler, 2 inch Ball
Product #: CA-5100-B
Specs
Product Detail
A-frame width (widest point): 10 inches
A-frame overall length: 13-3/8 inches
Capacity: 5,000 lbs GTW
Tongue weight capacity: 700 lbs
Ball size: 2 inches
Jack attachment port diameter: 2-1/4 inches
Safety Lock Pinhole diameter: 5/16 inch
A-frame overall length: 13-3/8 inches
Capacity: 5,000 lbs GTW
Tongue weight capacity: 700 lbs
Ball size: 2 inches
Jack attachment port diameter: 2-1/4 inches
Safety Lock Pinhole diameter: 5/16 inch
Product #
CA-5100-B
Product Description
This weld-on 5K A-Frame Coupler features a traditional, easy-to-use trigger latch for quick and secure hookup to a 2 inch trailer hitch ball. In addition to coupling and uncoupling safely and easily, it also offers a shackle hole for adding a coupler lock.
Made of durable 11-gauge steel and treated with black powder coat, this standard, A-frame coupler resists corrosion, rust, and scratches. It includes a hole toward the back of its shroud for installing a round utility jack.* Hit the road with confidence, hauling cargo at up to 5,000 lbs gross trailer weight.
Features
- 50 Degree A- Frame
- Easy-to-use trigger-style latch secures hitch quickly.
- Weld-on A-frame trailer application
- Durable 11 gauge steel construction
- Built-in port for jack attachment
- Corrosion-resistant black powder coat finish
- Construction: 1/8 inch (11 gauge) Steel with black powder-coat finish
- 1-Year warranty
- Application: Weld-On
- SAEJ684 certified
*This Weld-on 5K A-Frame Coupler requires three 3/8 inch-16 bolts (Not included) for mounting optional jack*
