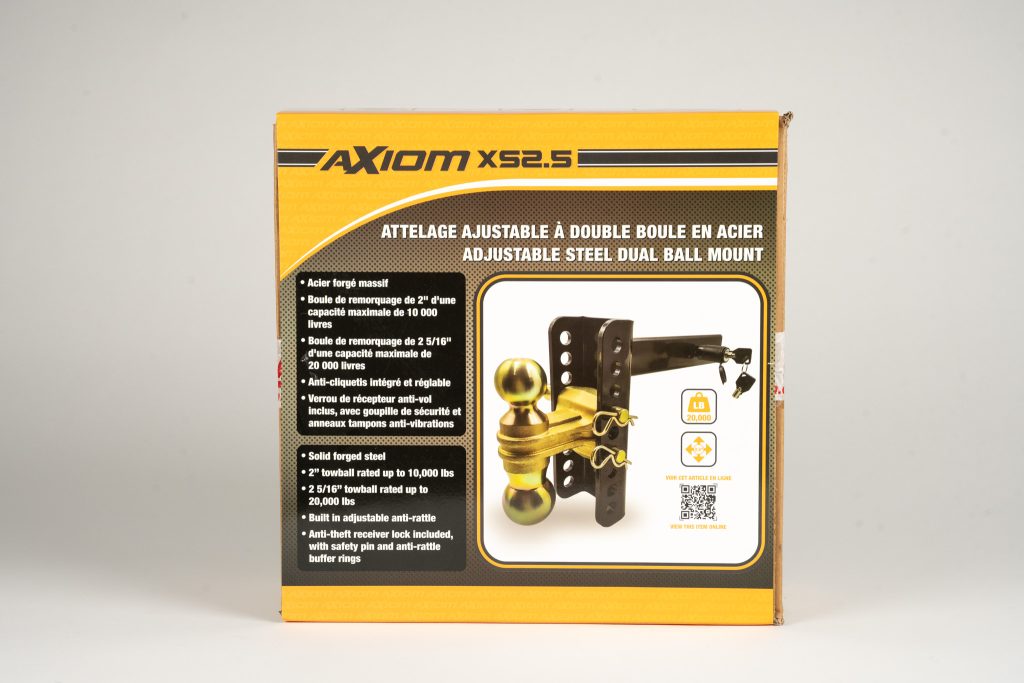

Axiom Adjustable 14K & 20K Hitches

Easily adjust a single, multi-use trailer hitch to work with a variety of trailers.

Axiom offers two adjustable ball mounts that support dual-ball hitches (2″ and 2 5/16″) and make level towing possible for a variety of trailers with different hitch heights.

By flipping the ball mounts up or down, you can raise the hitch up to 5 ¼” or drop it by as much as 6″. Evenly spaced pin holes allow you to move the hitch up or down incrementally to accommodate all the in-between trailer heights.

Choose from two models:

• 14K – Fits 2″ hitch receivers, and can carry up to 14,000 lbs., on its 2 5/16″ ball.

• 20K – Fits 2.5″ hitch receivers, and can carry up to 20,000 lbs., on its 2 5/16″ ball.

Dual ball sizes on one reversible mount:

• 2″ Ball – rated for up to 10,000 lbs on both 14K and 20K mounts.

• 2 5/16″ Ball – rated for up to 14,000 lbs. on 14K mount/20,000 lbs. on 20K mount.

Features

• Up to 10″ of adjustment.

• Fitting 2″ and 2-1/2″ square hitch receiver tubes, these mounts are compatible with most Class 3, Class 4, and Class 5 vehicles.

• Anti-rattle design minimizes steel-on-steel contact for less noise, decreased wear, and a smoother ride.

• Includes anti-theft receiver lock.

• Protected against weather, moisture, and scratches for long-term durability.

Specifications – 14K/20K

• Gross Trailer Weight: 14,000 lbs. / 20,000 lbs.

• 2-5/16 Ball Towing Capacity: 14,000 lbs. / 20,000 lbs.

• Ball 1 Diameter: 2” (both)

• Ball 2 Diameter: 2-5/16” (both)

• 2” Ball towing Capacity: 10.000 lbs. (both)

• Mount Finish: Black Powder Coat (both)

• Ball Finish: Yellow Zinc-Plated (both)
