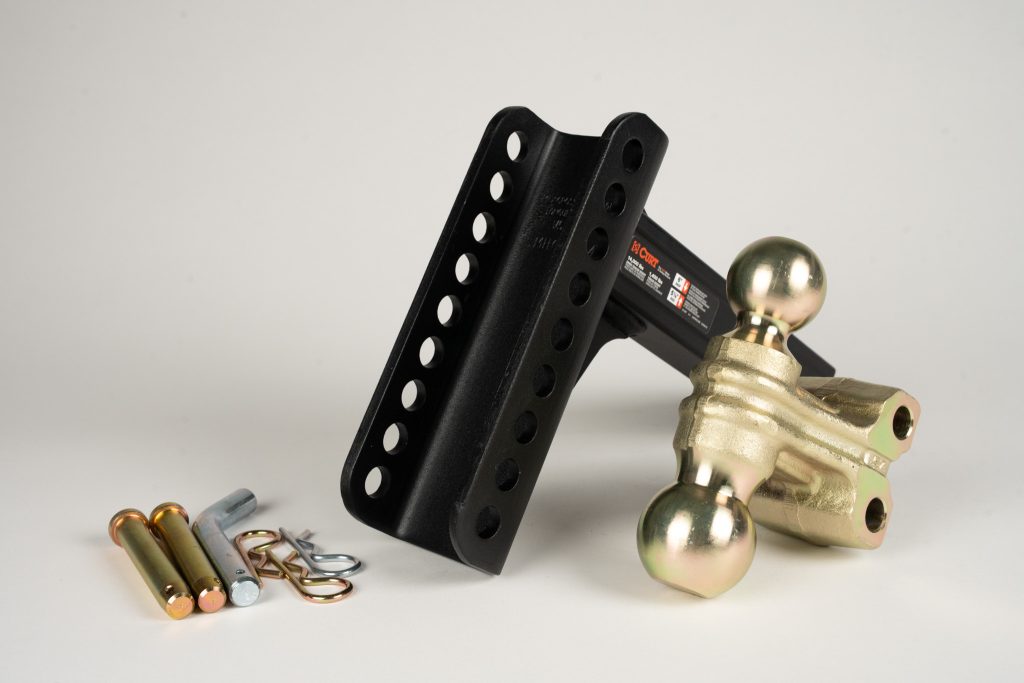

CURT Adjustable 14K and 20K Hitches

A highly versatile CURT adjustable channel mount can save you the trouble and expense of swapping out trailer hitches and balls for different vehicles with various hitch heights.

First, you can choose from two models, both featuring a reversible, channel-mounted, dual-ball hitch you can flip to accommodate couplers made for the standard 2″ or 2-5/16″ ball size.

The CUR-45900 hitch features a 2″ wide shank that can fit into any 2″ x2″ receiver hitch and is rated for a maximum gross trailer weight of 14,000 lbs.

The CUR-45902 hitch has a 2-1/2″ shank for 2-1/2″ x 2-1/2″ receiver hitches, including CURT Commercial Duty class 5 trailer hitches.

Adjustment Features for level towing and road safety

• A two-ball mount with one 2″ and one 2-5/16″ ball

• Reversible 9-hole channel offers 8 drop adjustments down to a 6″ drop. When flipped to rise mode, it can raise your ball height by up to 5-¼”.

• Two hitch pin holes for adjusting the length of the ball mount from 11″ to 12″.

Other Features

• 3″ channel can also be used with pintle hooks and other accessory attachments

• Hitch pin and clip system holds 2-ball mount.

• Rubber anti-rattle noise deadener between the channel and ball mount

• Durable shank and channel construction with wear and corrosion-resistant powder coat.

• Dual ball mount is protected from rust and corrosion by rust and corrosion-resistant zinc plating.

Specifications

• Receiver or hitch sizes are 2″ or 2-½”

• Channel Bracket Inside Width: 3″

• Channel Pin hole spacing: 1″

• Max GTW using 2-5/16″ Ball: 45900 – 14,000 lbs. / 45902 – 20,000 lbs.

• Max GTW using 2″ Ball: 10,000 lbs. (both models)
