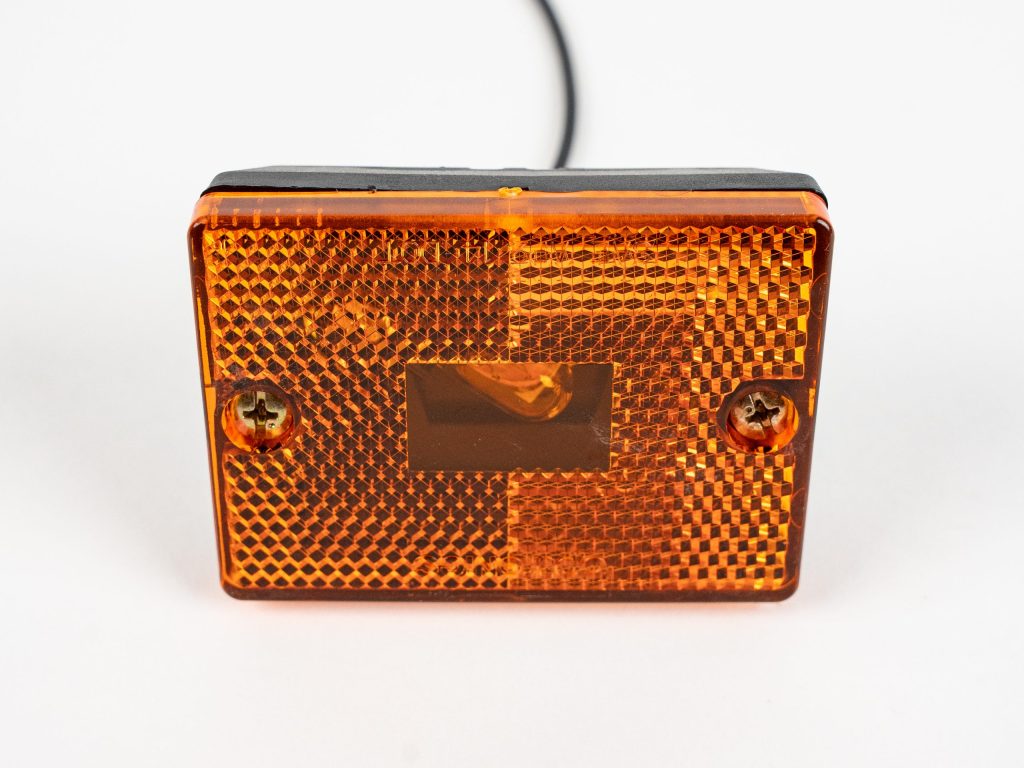

Rectangle Stud Mounted Marker Light

This Rectangle Stud Mounted Marker Light installs flat and works as either a trailer clearance or side marker light. This amber incandescent light includes a built-in reflex reflector to reflect the lights from approaching vehicles if its own bulb should fail. It’s P2 rated to create a 45 degree angle of light on either side of its center line, for a total of 90 degrees.

An exact OEM match, this model can replace other popular market lights, including the Uni Bond #MR2020A, Wesbar #3101, and Peterson #114A.

Installing the Rectangle Stud Mounted Marker Light

1. Drill holes in your trailer frame for the mounting stud and the single power wire (about 1/2 inch apart)
2. Slide power line through lower hole. Then push the stud through the upper hole.
3. Install lock washer and tighten nut on stud.
4. Attach light’s black power wire to your trailer’s brown running light wire with butt wire and electrical tape.
5. Finally, turn on power to see if your light works.

Each light you install will draw only 0.2 amps and grounds on its stud.

Features

• Models & Colours: MC36AB Amber, MC36RB Red
• Stud Mount for easy installation
• 2 3/4 inches W x 2 1/8 inches H x 1 inch D
• Durable ABS housing
• Screw-on lens
• Easy-to-replace 194 incandescent bulb
• Built-in reflector eliminates need for separate reflector.
• Self-grounding single wire design
• 12.8V voltage & 0.2 amp draw
• 3-year warranty
