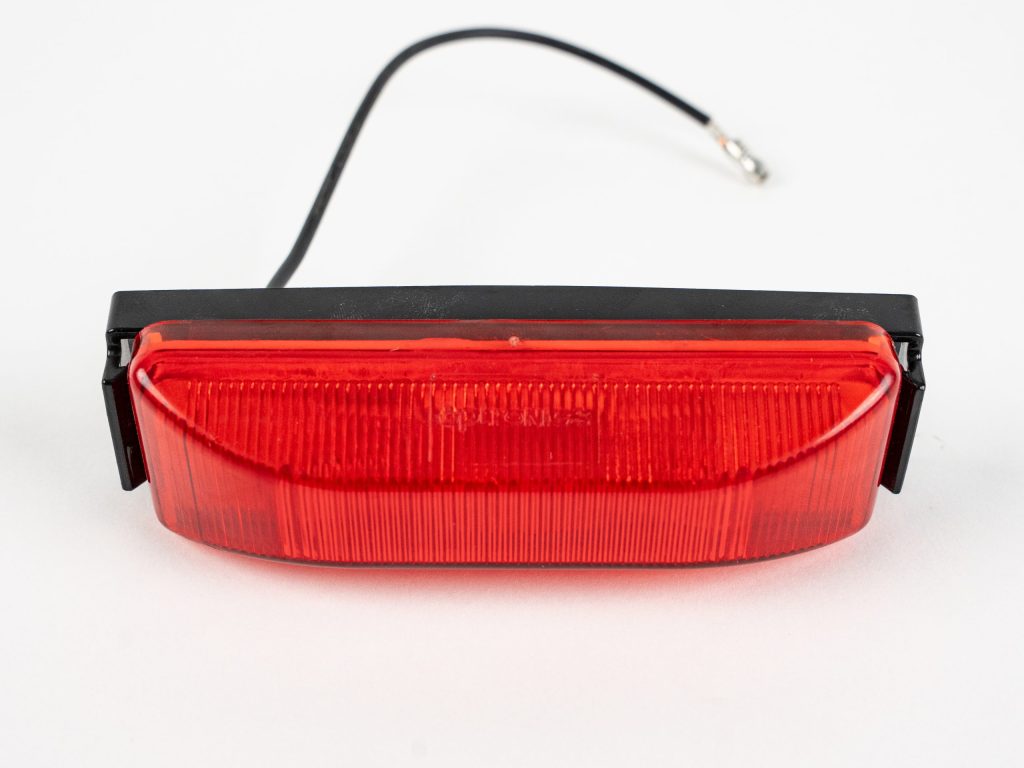

Thinline Surface Mounted Marker Light

This Thinline Surface Mounted Marker Light functions either as clearance light or side marker light. Its thin profile allows it to fit into tight spaces, but it has the durability to keep working through vibration or rough weather.

It’s submersible and sonically sealed against corrosion, and its water-proof molded housing unit and polycarbonate lens keep moisture out. Inside that protective shell, a dual mini incandescent system casts light 180 degrees for high nighttime visibility.

Thinline Surface Mounted Marker Light Installation

The housing and lens disconnect easily from the mounting base, which features a grounding connection around the mount hole.  This enables self-grounding around your mounting hardware. That leaves only a single power wire to attach to your trailer power. It connects easily via a butt connector.

Once you’re done with the electrical, tighten down your corrosion-resistance nut-and-bolt mounting hardware. Then the housing snaps back onto the mounting base with a standard two-prong electrical connection. After you test your light, you’re ready to hit the road.

When you do, these bright lights will keep other motorists well aware of your truck, trailer, or heavy commercial vehicle. Its dimensions, position, and distance will be well marked, so everyone can enjoy a safe drive at night or in other low-visibility conditions.

Features

• Available colours: Amber (yellow) & red
• Sonically sealed against moisture
• Meets all legal standards for illumination.
• 4 1/8 inches L x 1 1/4 inches W x 1 1/4 inches D
• 3 inches between Mounting holes
• 12.8V voltage, 0.04 amp draw
• Pre-greased electrical contacts
• Guide channel under mount for running your wire.
